| how to PERFORM A ISDN30 ALARM CHECK |
| Allows you to perform a line test on ISDN2, ISDN2 Home Highway,
ISDN30 and PSTN lines that have faults logged against them. You perform a line test by: |
|

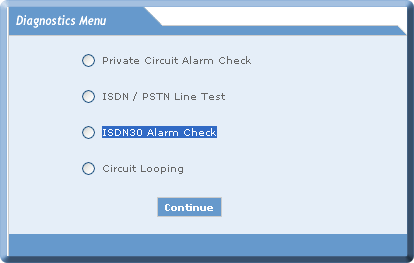

Select the Option for ISDN30 Alarm Check and press Continue button
|
 |
|

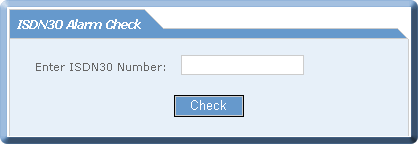

Following window will be displayed. Enter the ISDN30
Number and press Check
button |
 |
|

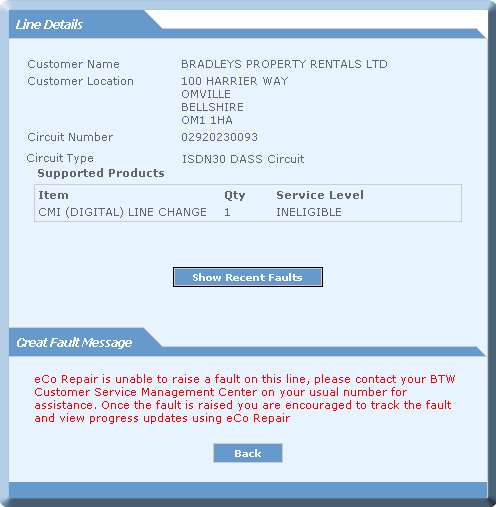

If you have entered a WLR3 ISDN30 telephone number then line details along with a message is displayed as shown below. |
 |
|
Note: Line Test on WLR3 ISDN30 faults cannot be carried by accessing eCo.Repair ROBT. Please not the create fault message. To carry out Line Test on such circuits BTW Customer Service Management Center needs to be contacted. |
|

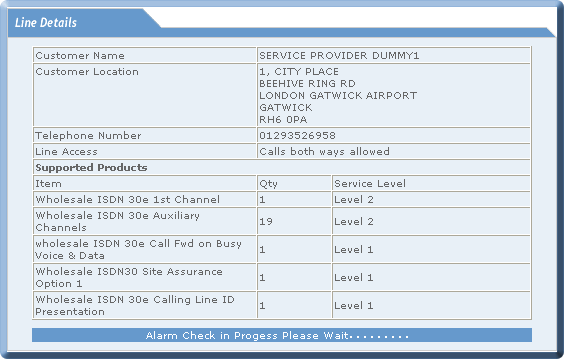

If you have entered a WLR2 ISDN30 telephone number
line details for the number will be displayed as shown below |
 |
|

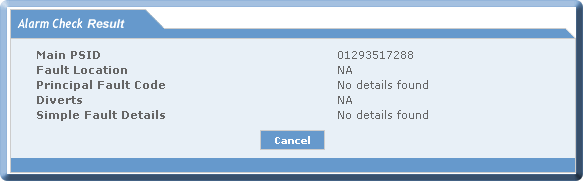

Alarm Check result will be displayed as shown below |
 |
| Nov 2008 Issue 08.11 eCo.Repair Version 6.0 |
|
